AMJ Module K Cat.6A, T568B

Technical Attributes
Short name AMJ Module K Cat.6A T568B

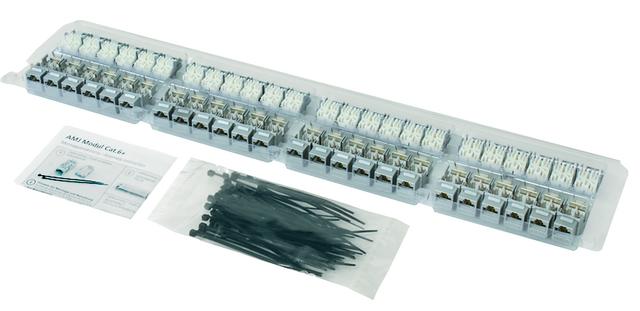

Type blister package (24 pcs.)
Remarks tool-free connectivity, suitable for RJ45/11/12 plugs

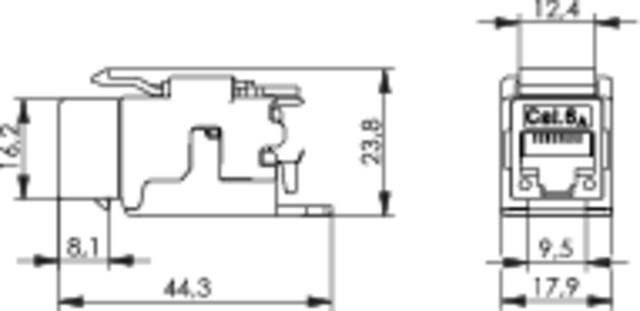

Mount. dim. Z121

0

J00029B0077Teleg SKU Pieces Categories , , , , Tag
This product is also available in: Persian
Share on facebook
Share on twitter
Share on email
Share on pinterest
Share on google

Description

Performance Characteristics

  • Cat.6A acc. to IEC 60603-7-51
  • link certificate: Class EA acc. to ISO/IEC 11801
  • Cat.6A certified by independent testing laboratory under ISO/IEC 11801
  • 10 Gigabit-Ethernet compliant (IEEE 802.3an)
  • fully-automated production of Cat.6A RJ45 core to guarantee a uniformly high quality standard
  • overbending protection: ≥750 mating cycles with RJ45/RJ11/RJ12 plugs
  • suitable for POE+ (Power Over Ethernet)
  • universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm
  • optically monitored inspection of the RJ45 contact heights
  • Made in Germany
Mechanical Characteristics
Insertion force ≤ 30 N
Life (mating cycles RJ45, RJ12, RJ11) ≥ 750
Material: housing zinc diecast
Material: insulating housing
Material: snap-fit PC UL94 V0 black
Material: shield German silver
Material: insulators PBT
Material: PCB FR4
Material: PCB finish chem. tin-plated
Material: contact spring spring steel
Material: contact spring finish min. 0,8 µm (µin) Au on 1,2 µm (50µin) Ni
Material: contact IDC termination CuNi2Si
Material: IDC termination finish min. 3-6 µm (120-240 µin) Sn
Material: cable ties PA UL94 V2
Cu-Conductor diameter: solid 0.41 – 0.64 mm AWG 26/1 – AWG 22/1
Cu-Conductor diameter: stranded 0.46 – 0.76 mm AWG 27/7 – AWG 22/7
Insulation diameter 0.9 – 1.6 mm
Reusable IDC for AWG 22/1 and AWG 22/7 ≤4 cycles
Reusable IDC für AWG 23/1 – AWG 26/1 ≤10 cycles
Reusable IDV for AWG 24/7 – 27/7 ≤10 cycles
Cable diameter max. 9 mm
Electrical Characteristics
Contact resistance ≤ 20 mΩ
Insulation resistance ≥ 500 MΩ
Voltage proof: contact-contact ≥ 1000 V, DC
Voltage proof: contact-shield ≥ 1500 V, DC
Current carrying capacity at 50°C 1 A
PoE+ acc to IEEE 802.3at PoE+
Standards
Connectors IEC 60603-7-51
Transmission Characteristics
Category 6A (Component) ISO/IEC 11801, DIN EN 50173-1
Class EA (Permanent Link) ISO/IEC 11801, DIN EN 50173-1
Class EA (Channel) ISO/IEC 11801, DIN EN 50173-1
Class E (Channel with Coupler Cat.6)
Class D (Channel with Coupler Cat.5e)
Gigabit Ethernet acc. to IEEE 802.3 fulfilled
10 Gigabit Ethernet acc. to IEEE 802.3an fulfilled
Accessories
B00001A0016 Retrofit dust cover flap for AMJ Module K black RAL9005
B00001B0016 Retrofit dust cover flap for AMJ Module K orange RAL 2009
B00001C0016 Retrofit dust cover flap for AMJ Module K green RAL 6017
B00001D0016 Retrofit dust cover flap for AMJ Module K blue RAL 5015
B00001E0016 Retrofit dust cover flap for AMJ Module K yellow RAL 1023
H06000A0056 Mounting set for Mounting rail adaptor
N00000A0013 Plier wrench 1 3/8 inch
N00000B0020 Parallel pressing tool for AMJ/UMJ/STX modules; MFP8
H06000A0045 Top-Hat Rail Adaptor TH 35 without modules/coupler
H06000B0045 Top-Hat Rail Adaptor TH 35 without modules/coupler
