field assembly RJ45 plug MFP8 T568 B Cat.6A

Technical Attributes
Short name MFP8 T568 B Cat.6A
Remarks AWG 24/1-22/1, AWG 27/7-22/7, incl. pre-assembled dust protection cap

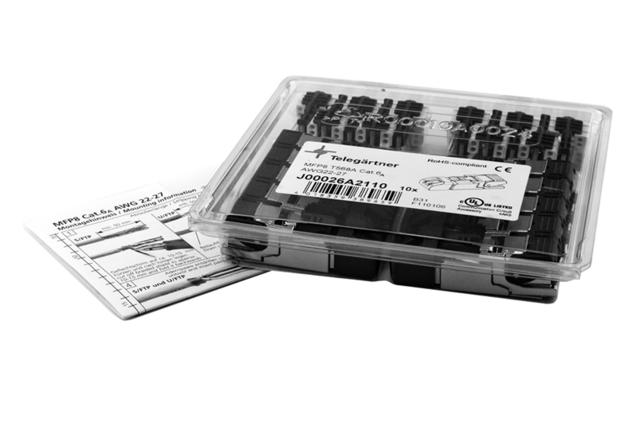

Type blister package (10 pcs.)

0

J00026A2111Teleg SKU Pieces Categories , , Tag
This product is also available in: Persian
Share on facebook
Share on twitter
Share on email
Share on pinterest
Share on google

Description

Performance Characteristics

  • pre-assembled protection cap
  • robust zinc diecast housing
  • 360° shielding
  • full metal shielding between pairs of wires
  • three strain relief settings (cable diameters 5.0 mm to 9.0 mm)
  • can be assembled in 60 seconds without any special tools
  • optimised for the field, including demanding applications
  • secure transmission even with outside interference
  • four-chamber wire manager (available with colour code T568A or T568B and PROFINET)
  • suitable for cabling in office buildings, data centers, industrial facilities and home networks
  • supreme reliability
  • ideal for network repairs, special lengths and extensions
  • piercing contacts suitable solid and stranded conductors
Mechanical Characteristics
Insertion force ≤ 30N
Durability (mating cycles) ≥ 750
Reusable contacts ≤4 cycles
Material: contacts spring steel
Material: contact finish Ni1,2Au0,8
Material: connector housing PC UL94 V0
Material: PCB FR4 UL 94 V0
Material: piercing contacts phosphor bronze tinned
Material: shield contact brass, nickel-plated
Material: wire pair presorting PC UL94 V0 white
Material: uplock hook PBT UL94 V0
Material: shielding housing zinc diecast, nickel-plated
Material: cable clamp PBT UL94 V0
Material: dust cap PBT UL94 V0
Mating Requirements Cu-Conductor diameter: solid 0.51 – 0.64 mm (AWG24/1-22/1)
Mating Requirements Cu-Conductor diameter: stranded 0.46 – 0.76 mm (AWG27/7-22/7)
Mating Requirements Cu-Conductor diameter: stranded* 0.61 – 0.78 mm (AWG24-22/19)
Core Diameter 1.0 – 1.6 mm
Overall cable diameter 5.0 – 9.0 mm
Climatic Characteristics
Temperature range -40°C … +85°C
UL E244889
Electrical Characteristics
Current carrying capacity at 50°C 1 A
PoE+ acc to IEEE 802.3at Adequate for Power over Ethernet+
Standards
Connectors IEC 60603-7-51
Transmission Characteristics
10 Gigabit Ethernet acc. to IEEE 802.3an Adequate for 10 Gigabit Ethernet
