کیستون بدون شیلد ، Cat.6

Technical Attributes
Short name UMJ Module K Class EA 500 T568B

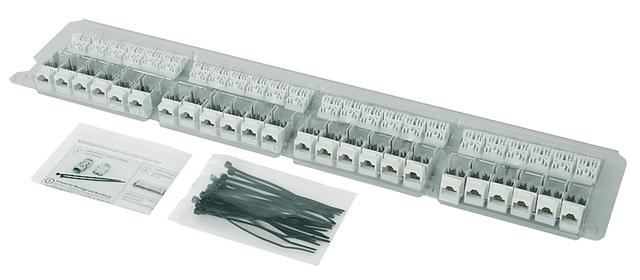

Type blister package (24 pcs.)
Remarks tool-free connectivity, suitable for RJ45/11/12 plugs
Mount. dim. Z121

0

J00029L0078Teleg SKU Pieces Categories , , , تگ
This product is also available in: English
به اشتراک گذاری بر روی facebook
به اشتراک گذاری بر روی twitter
به اشتراک گذاری بر روی email
به اشتراک گذاری بر روی pinterest
به اشتراک گذاری بر روی google

توضیحات

Performance Characteristics

  • Class EA 500 Permanent Link acc. to ISO/IEC 11801/EN 50173-1 (except Cat.5e and USB)
  • unshielded

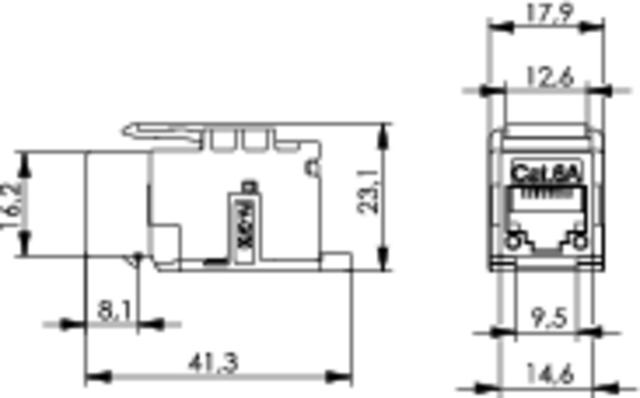

  • universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm
  • 10 Gigabit Ethernet compliant (IEEE 802.3an)
  • fully-automated production of Class EA 500 RJ45 core to guarantee a uniformly high quality standard (transmission characteristic values)
  • optically monitored inspection of the RJ45 contact heights
  • Made in Germany
Mechanical Characteristics
Insertion force ≤ 20 N
Durability (mating cycles) ≥ 750
Mating Face DIN IEC 60603-7-4
Material: housing PA6 GF30 RAL 9010 pure white
Material: wire pair presorting PA6 GF30 RAL 9010 pure white
Material: snap-fit PA6 GF30 RAL 9010 pure white
Material: insulating plate PBT GF15 nature
Material: insulation body PBT nature
Material: PCB FR4
Material: PCB finish Cu 35/35 chem. tinned
Material: contact spring spring steel
Material: contact finish min. 0,8 µm Au on 1,2 µm Ni
Material: contact IDC termination CuNi2Si
Material: IDC termination finish min. 3 – 6 µm Sn
Material: cable ties PA6.6 UL94 V2
IDC Termination: Cu conductor diameter solid 0,40 -0,65 AWG 26/1 – AWG 22/1; stranded 0,46 – 0,61 AWG27/7 – AWG24/7
IDC Termination: Cu insulation diameter 0,9 – 1,6 mm
Climatic Characteristics
Tested / classified in accordance with DIN IEC 60068-1 25/070/21
Electrical Characteristics
Contact resistance: RJ45 jack ≤ 20 mΩ
Insulation resistance ≥ 500 MΩ
Voltage proof: contact-contact ≥ 1000 V=
Working current at 50° C 1 A
Transmission Characteristics
Cat.6 TIA/EIA-568-B.2-1; ISO/IEC 11801 2nd edition; EN 60603-7-4
Accessories
B00001A0016 Retrofit dust cover flap for AMJ Module K black RAL9005
B00001B0016 Retrofit dust cover flap for AMJ Module K orange RAL 2009
B00001C0016 Retrofit dust cover flap for AMJ Module K green RAL 6017
B00001D0016 Retrofit dust cover flap for AMJ Module K blue RAL 5015
B00001E0016 Retrofit dust cover flap for AMJ Module K yellow RAL 1023
H06000A0056 Mounting set for Mounting rail adaptor
N00000A0013 Plier wrench 1 3/8 inch
N00000B0020 Parallel pressing tool for AMJ/UMJ/STX modules; MFP8
H06000B0045 Top-Hat Rail Adaptor TH 35 without modules/coupler
H06000A0045 Top-Hat Rail Adaptor TH 35 without modules/coupler
