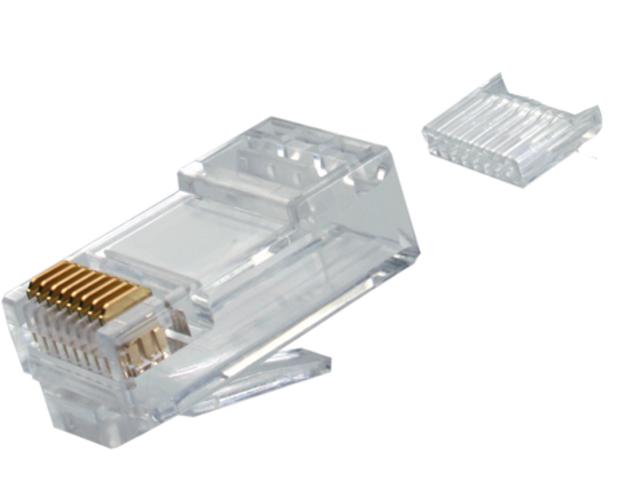

RJ45 plug MP8(8), short wire presorting-unshielded

Technical Attributes
Short name MP8(8) Cat.6, short wire presorting
Remarks 8-way, unshielded with wire presorting; AWG 24-26 (stranded and solid); please order cable boot separately

0

J00026A0182Teleg SKU Pieces Categories , , , , Tag
This product is also available in: Persian
Share on facebook
Share on twitter
Share on email
Share on pinterest
Share on google

Description

Mechanical Characteristics
Insertion force ≤ 20 N
Durability (mating cycles) ≥ 750
Material: contacts phosphor bronze
Material: contact finish Ni2.54Au0.8
Material: connector housing PC UL94 V0
Material: insertion PC UL94 V0
Material: shielding housing
Material: cable boot PVC UL94 V0 (Ø 5.5 mm)
Mating Requirements Cu-Conductor diameter: solid 0.36 – 0.51 mm (AWG27/1 – 24/1)
Mating Requirements Cu-Conductor diameter: stranded 0.46 – 0.61 mm (AWG27/7 – 24/7)
Core Diameter 0.85 – 1.02 mm
Overall cable diameter 3.-2 – 5.5 mm
Crimp tool N00001A0011
Climatic Characteristics
Temperature range -40°C … 70°C
Electrical Characteristics
Current carrying capacity at 50°C 1 A
PoE+ acc to IEEE 802.3at Adequate for Power over Ethernet+
Standards
Connectors IEC 60603-7-2
Transmission Characteristics
Gigabit Ethernet acc. to IEEE 802.3 Adequate for Gigabit Ethernet
10 Gigabit Ethernet acc. to IEEE 802.3an
Accessories
B00081A0036 Cable boot, grey, for J00026A0182
B00081B0036 Cable boot, red, for J00026A0182
B00081C0036 Cable boot, blue, for J00026A0182
B00081D0036 Cable boot, yellow, for J00026A0182
B00081E0036 Cable boot, green, for J00026A0182
N00001A0011 Crimp tool with insert for unshielded MP8(8)-plug; life ≥ 1.000 crimping operations
B00081F0036 Cable boot, black, for J00026A0182
